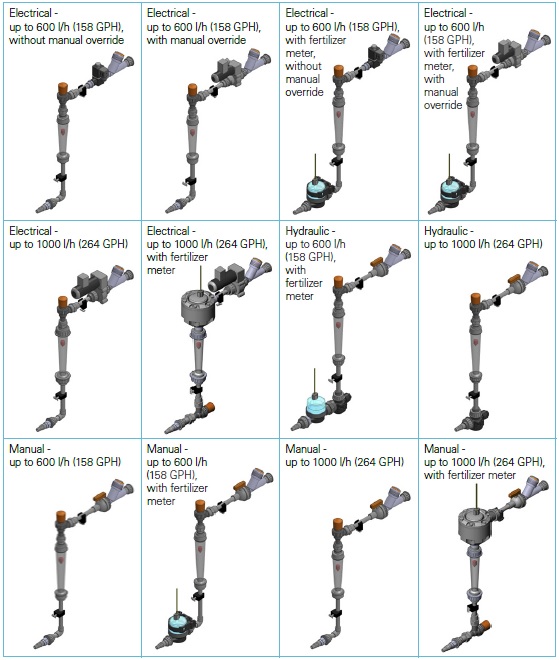

To accommodate a variety of installations, flow rates and Nutrigation™ needs, a wide range of dosing channels are available for the Netafim CMT range, some of which are listed below.
Features of Channels for fertilizer or diluted acids
- Capacities - 50 - 1000l/hr
- Available in 50 or 60Hz
- Manual - for applications without a controller
- Hydraulic - for DC latching with RTU applications
- Bio - applications with high viscosity, e.g. bio, organic, with an enabled flushing sequence after each irrigation shift
- EPDM diaphragm & O-rings for diluted acid (<3% Nitric Acid / <85% Phosphoric Acid)
Features of Channels for concentrated acids
- Capacities - 50 - 370l/hr
- AC
- Available in 50 or 60Hz
- Viton diaphragm & O-rings for concentrated acid (<38% Nitric Acid / <85% Phosphoric Acid)
