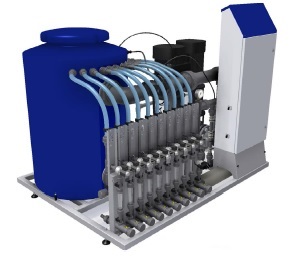

The Priva Nutriflex is a multifunction injection unit incorporating an open mixing tank, capable of dosing and mixing of fertilisers and acids with supply water to form homogeneous irrigation water. The unit is ideal for consideration where final adjustment is needed to the pH value of the water.
Features and Benefits
- Efficient, safe and reliable
- Comes with system pump on rig selected at design stage
- Up to 10 x Dosing Channels
- 38% acid channel (optional)
- 270 Litre net open mixing tank (standard unit)
- Inline dirt filter ands manometer on each Dosing Channel branch
- Optimal mixing via reliable dosing channel configuration
- Stable homogenisation of solution
- Double EC and pH sensors
- Built in dry run protection in Mix Tank
- Overload protection on system pump
- Ideal for applications utilising the "indirect distribution" method of fill day storage tanks (24 hour holding feed tanks) from which fertilisers are pumped utilising a secondary pumping system.
Capabilities
- Flows of 5-65m³/hr depending on system pump selected
- Customisable units up to 110m³/hr can be catered for (850 Litre mix tank net)
- Up to 6 Bar pressure depending on system pump selected
- Up to 5 x 300l/hr Dosing Channels
- EC & pH Control
Other
- If supply water contains more than 1.25 mmol/l bicarbonate, it is strongly recommended to pre-treat said water with acid (Priva Neutralizer)
