BRIDGELESS MICRO-SPRINKLER WITH SHOULDER DISTRIBUTOR

APPLICATIONS

Micro-sprinkler with a specifically designed connector (SD – shoulder distributor) that achieves excellent results when rectangular irrigation is needed.
Bridgeless design.
Micro-sprinkler, 6 different flow rates : 090/050, 120/070, 160/070, 160/090, 200/090, 200/120 l/h. Nominal flow rates at 2.0 bar pressure.
Recommended working pressure: 2.0 up to 3.0 bar.
Recommended filtration : 130 micron / 120 mesh. Filtration method is to be selected based on the kind and concentration of the dirt particles existing in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydro-cyclone filter is to be installed before the main filter. When sand/ silt/ clay solids exceed 100 ppm, pre treatment will be applied according to Netafim™ expert team's instructions.
Inlet connector: Press fit.
3 different rotors: LR - High trajectory, colored Green, FLT - Flat distributor, colored Gray, SR - Low trajectory, colored Blue

Bridgeless design eliminates dripping.
Interchangeable components. SpinNet™SD micro-sprinklers can be disassembled by hand should they need cleaning - no tools are required.
Acid resistant (AA) raw materials, thus allowing the application chemicals to pass through the system. The system can be cleaned by application of suitable acid treatments.
Excellent uniformity distribution on a single irrigation line. Traditional sprinkler layout spaces the sprinklers "head to head" or at spacing equal to the radius of the sprinkler throw. For larger areas, the patterns are overlapped. The SpinNet™ SD solution avoids the problems of the traditional sprinkler layout and achieves a high level of uniformity within a closely spaced "strip of sprinklers".

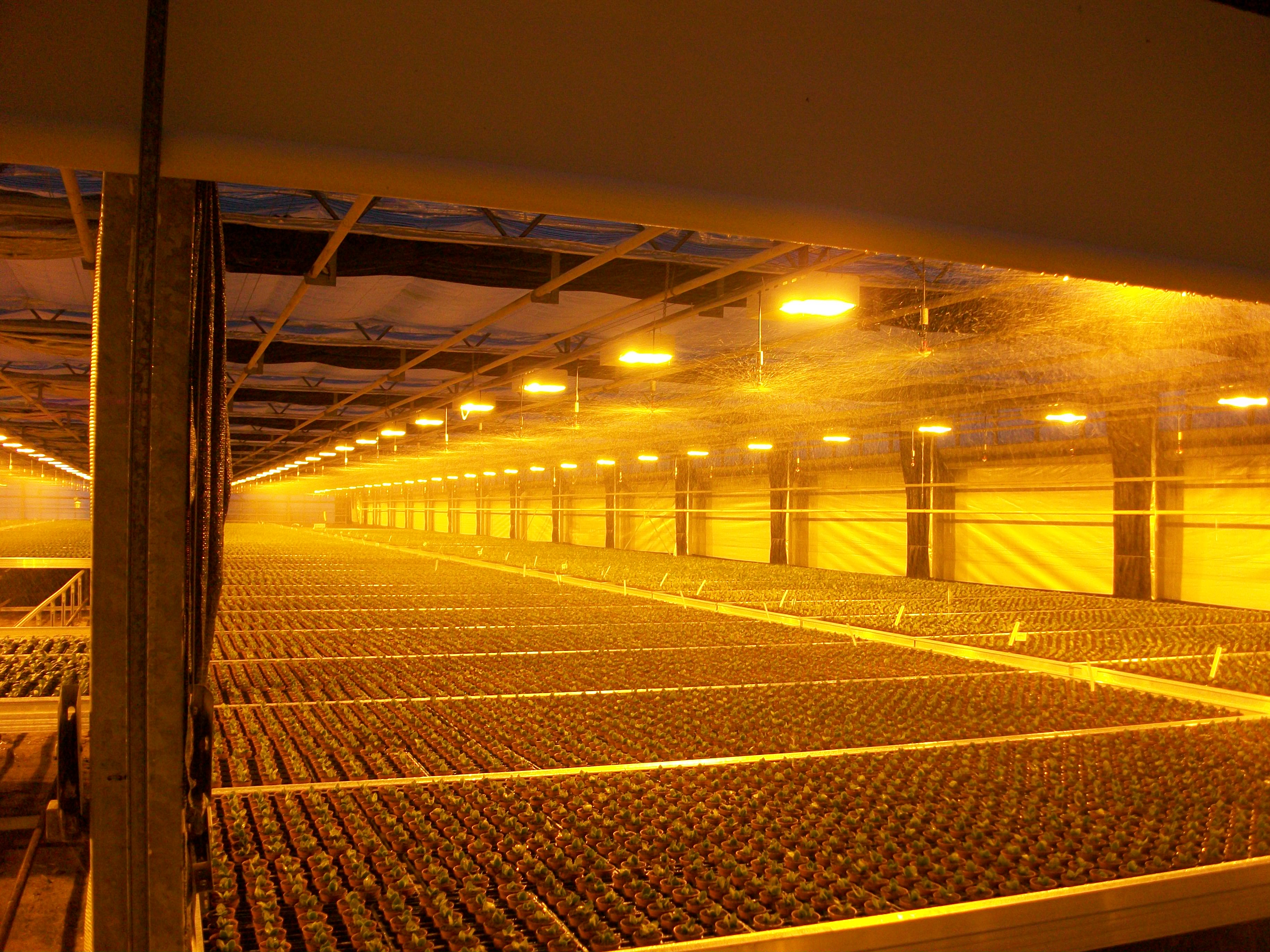

Specially designed to fully cover rectangular areas with excellent uniformity distribution and high percentage of the water within the required rectangular area.
Strongly recommended to connect the SpinNet™SD to the distribution pipe with a SSPE (super soft PE) micro-tube, a specifically designed stabilizer and AD valve (anti-drain) that will prevent distribution pipe drainage.
